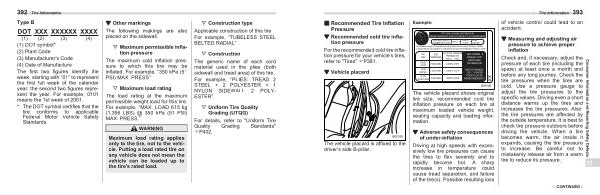

392 Type B
Tire Information DOT XXX XXXXXX XXXX
( 1 ) ( 2 ) ( 3 ) ( 4 ) ( 1 ) DOT symbol * ( 2 ) Plant Code ( 3 ) Manufacturer ’ s Code ( 4 ) Date of Manufacture
The first two figures identify the week , starting with “ 01 ” to represent the first full week of the calendar year ; the second two figures represent the year . For example , 0101 means the 1st week of 2001 .
*: The DOT symbol certifies that the tire conforms to applicable Federal Motor Vehicle Safety Standards .
▼ Other markings
The following makings are also placed on the sidewall . ▽ Maximum permissible inflation pressure
The maximum cold inflation pressure to which this tire may be inflated . For example , “ 350 kPa ( 51 PSI ) MAX . PRESS ”
▽ Maximum load rating
The load rating at the maximum permissible weight load for this tire . For example , “ MAX . LOAD 615 kg ( 1,356 LBS ) @ 350 kPa ( 51 PSI ) MAX . PRESS .”
WARNING
Maximum load rating applies only to the tire , not to the vehicle . Putting a load rated tire on any vehicle does not mean the vehicle can be loaded up to the tire ’ s rated load .
