338

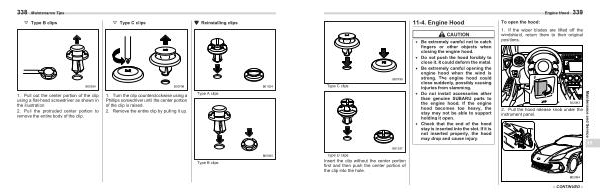

Maintenance Tips ▽ Type B clips
▽ Type C clips
▼ B00924
1 . Pull out the center portion of the clip using a flat-head screwdriver as shown in the illustration .
2 . Pull the protruded center portion to remove the entire body of the clip .
B00798
1 . Turn the clip counterclockwise using a Phillips screwdriver until the center portion of the clip is raised .
2 . Remove the entire clip by pulling it up .
