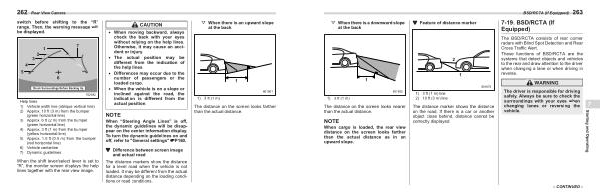

262
Rear View Camera switch before shifting to the “ R ” range . Then , the warning message will be displayed .
4
5
3 2
1
6
Check Surroundings Before Backing Up 702392
Help lines 1 ) Vehicle width line ( oblique vertical line )
2 ) Approx . 10 ft ( 3 m ) from the bumper � ( green horizontal line )
3 ) Approx . 6 ft ( 2 m ) from the bumper � ( green horizontal line )
4 ) Approx . 3 ft ( 1 m ) from the bumper � ( yellow horizontal line )
5 ) Approx . 1.5 ft ( 0.5 m ) from the bumper ( red horizontal line )
6 ) Vehicle centerline 7 ) Dynamic guidelines
When the shift lever / select lever is set to “ R ”, the monitor screen displays the help lines together with the rear view image .
7
CAUTION � When moving backward , always check the back with your eyes without relying on the help lines . Otherwise , it may cause an accident or injury .
� The actual position may be different from the indication of the help lines .
� Differences may occur due to the number of passengers or the loaded cargo .
� When the vehicle is on a slope or inclined against the road , the indication is different from the actual position . NOTE
When “ Steering Angle Lines ” is off , the dynamic guidelines will be disappear on the center information display . To turn the dynamic guidelines on and off , refer to " General settings " �P160 .
▼ Difference between screen image and actual road
The distance markers show the distance for a level road when the vehicle is not loaded . It may be different from the actual distance depending on the loading conditions or road conditions .
