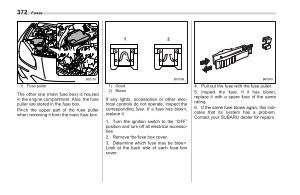

372
Fuses
1 2 1
1 ) Fuse puller
B02118
The other one ( main fuse box ) is housed in the engine compartment . Also , the fuse puller are stored in the fuse box .
Pinch the upper part of the fuse puller when removing it from the main fuse box .
B01008
If any lights , accessories or other electrical controls do not operate , inspect the corresponding fuse . If a fuse has blown , replace it .
1 . Turn the ignition switch to the “ OFF ” position and turn off all electrical accessories .
2 . Remove the fuse box cover .
3 . Determine which fuse may be blown . Look at the back side of each fuse box cover .
4
5 re ra
6 c C
