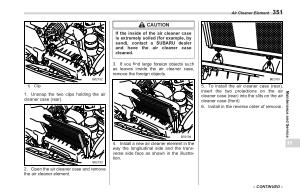

BRZ _ U . book 351 ページ 2022 年 3 月 29 日 火曜日 午後 3 時 59 分
1
CAUTION
If the inside of the air cleaner case is extremely soiled ( for example , by sand ), contact a SUBARU dealer and have the air cleaner case cleaned . 1 ) Clip
B02102
3 . If you find large foreign objects such as leaves inside the air cleaner case , remove the foreign objects .
1 . Unsnap the two clips holding the air cleaner case ( rear ).
B02103
2 . Open the air cleaner case and remove the air cleaner element .
B02104
4 . Install a new air cleaner element in the way the longitudinal side and the transverse side face as shown in the illustration .
