284

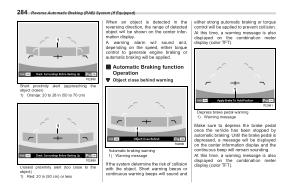

Reverse Automatic Braking ( RAB ) System ( If Equipped ) 1
When an object is detected in the reversing direction , the range of detected object will be shown on the center information display .
A warning alarm will sound and , depending on the speed , either torque control to generate engine braking or automatic braking will be applied . e c
A d d 702888
Short proximity alert ( approaching the object closer )
1 ) Orange : 20 to 28 in ( 50 to 70 cm )
■ Automatic Braking function Operation
▼ Object close behind warning
1
702889
Closest proximity alert ( too close to the object )
1 ) Red : 20 in ( 50 cm ) or less
1
Automatic braking warning 1 ) Warning message
702890
If the system determine the risk of collision with the object . Short warning beeps or continuous warning beeps will sound and
