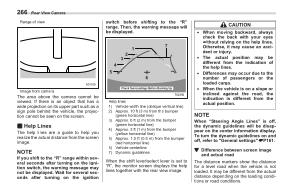

266 |
Rear View Camera |
Range of view |
|
4
5
|
3 2
|
1 |
6 |
7 |
||
|
601105
Image from camera
The area above the camera cannot be viewed . If there is an object that has a wide projection on its upper part such as a sign pole behind the vehicle , the projection cannot be seen on the screen .
■ Help Lines
The help lines are a guide to help you realize the actual distance from the screen image .
NOTE
If you shift to the “ R ” range within several seconds after turning on the ignition switch , the warning message may not be displayed . Wait for several seconds after turning on the ignition
|
Check Surroundings Before Backing Up
702392
Help lines 1 ) Vehicle width line ( oblique vertical line )
2 ) Approx . 10 ft ( 3 m ) from the bumper � ( green horizontal line )
3 ) Approx . 6 ft ( 2 m ) from the bumper � ( green horizontal line )
4 ) Approx . 3 ft ( 1 m ) from the bumper � ( yellow horizontal line )
5 ) Approx . 1.5 ft ( 0.5 m ) from the bumper ( red horizontal line )
6 ) Vehicle centerline 7 ) Dynamic guidelines
When the shift lever / select lever is set to “ R ”, the monitor screen displays the help lines together with the rear view image .
|
N
W th p T o
▼
T fo lo d ti
|
||||
