154

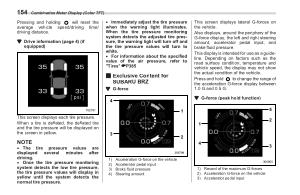

Combination Meter Display ( Color TFT ) Pressing and holding will reset the average vehicle speed / driving time / driving distance .
▼ Drive information ( page 4 ) ( if equipped ) 702781
This screen displays each tire pressure .
When a tire is deflated , the deflated tire and the tire pressure will be displayed on the screen in yellow .
NOTE
� The tire pressure values are displayed several minutes after driving . � Once the tire pressure monitoring system detects the low tire pressure , the tire pressure values will display in yellow until the system detects the normal tire pressure .
� Immediately adjust the tire pressure when the warning light illuminates . When the tire pressure monitoring system detects the adjusted tire pressure , the warning light will turn off and the tire pressure values will turn to white . � For information about the specified value of the air pressure , refer to " Tires " �P385
■ Exclusive Content for SUBARU BRZ
▼ G-force 4
3
1 ) |
Acceleration G-force on the vehicle |
2 ) |
Accelerator pedal input |
3 ) |
Brake fluid pressure |
4 ) |
Steering amount |
1
2
306799
T th
A G a b
T li ro v th
P th 1 ▼
