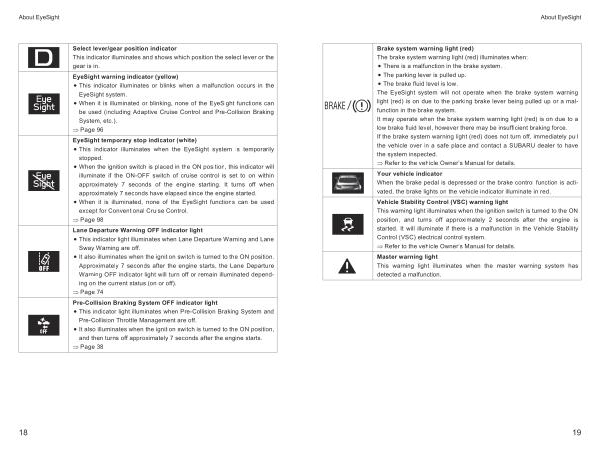

About EyeSight
Select lever / gear position indicator This indicator illuminates and shows which position the select lever or the gear is in . EyeSight warning indicator ( yellow )
• This indicator illuminates or blinks when a malfunction occurs in the EyeSight system .
• When it is illuminated or blinking , none of the EyeSight functions can be used ( including Adaptive Cruise Control and Pre-Collision Braking System , etc .).
� Page 96
EyeSight temporary stop indicator ( white )
• This indicator illuminates when the EyeSight system is temporarily stopped .
• When the ignition switch is placed in the ON position , this indicator will illuminate if the ON-OFF switch of cruise control is set to on within approximately 7 seconds of the engine starting . It turns off when approximately 7 seconds have elapsed since the engine started .
• When it is illuminated , none of the EyeSight functions can be used except for Conventional Cruise Control .
� Page 98
Lane Departure Warning OFF indicator light
• This indicator light illuminates when Lane Departure Warning and Lane Sway Warning are off .
• It also illuminates when the ignition switch is turned to the ON position . Approximately 7 seconds after the engine starts , the Lane Departure Warning OFF indicator light will turn off or remain illuminated depending on the current status ( on or off ).
� Page 74
Pre-Collision Braking System OFF indicator light
• This indicator light illuminates when Pre-Collision Braking System and Pre-Collision Throttle Management are off .
• It also illuminates when the ignition switch is turned to the ON position , and then turns off approximately 7 seconds after the engine starts .
� Page 38
18
