2-2. Instrument cluster

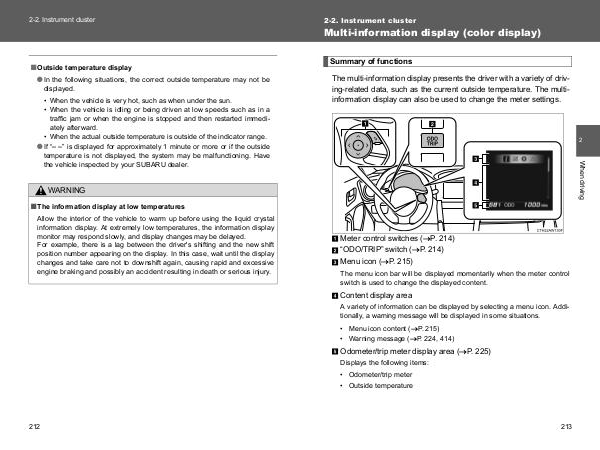

Multi-information display (color display)
Summary of functions
The multi-information display presents the driver with a variety of driving-related data, such as the current outside temperature. The multiinformation display can also be used to change the meter settings.
2
When driving
Meter control switches (oP. 214)
“ODO/TRIP” switch (oP. 214)
Menu icon (oP. 215)
The menu icon bar will be displayed momentarily when the meter control
switch is used to change the displayed content.
Content display area
A variety of information can be displayed by selecting a menu icon. Additionally, a warning message will be displayed in some situations.
• Menu icon content (oP. 215)
• Warning message (oP. 224, 414)
Odometer/trip meter display area (oP. 225)
Displays the following items:
• Odometer/trip meter
• Outside temperature
213
