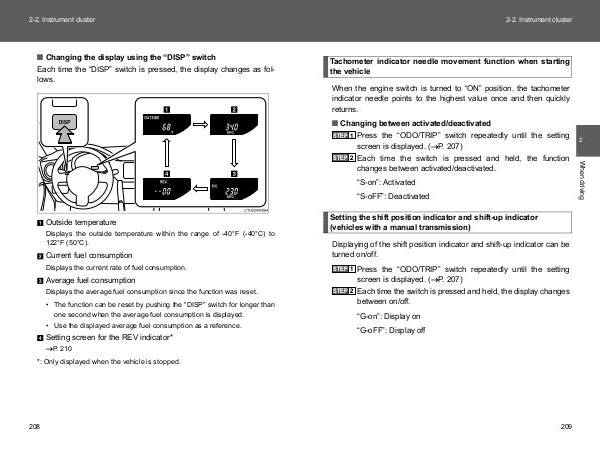

2-2. Instrument cluster
Tachometer indicator needle movement function when starting
the vehicle
When the engine switch is turned to “ON” position, the tachometer
indicator needle points to the highest value once and then quickly
returns.
■ Changing between activated/deactivated
Press the “ODO/TRIP” switch repeatedly until the setting
screen is displayed. (oP. 207)
STEP 2
Each time the switch is pressed and held, the function
changes between activated/deactivated.
“S-on”: Activated
“S-oFF”: Deactivated
Setting the shift position indicator and shift-up indicator
(vehicles with a manual transmission)
Displaying of the shift position indicator and shift-up indicator can be
turned on/off.
STEP 1
Press the “ODO/TRIP” switch repeatedly until the setting
screen is displayed. (oP. 207)
STEP 2
Each time the switch is pressed and held, the display changes
between on/off.
“G-on”: Display on
“G-oFF”: Display off
209
2
When driving
STEP 1
