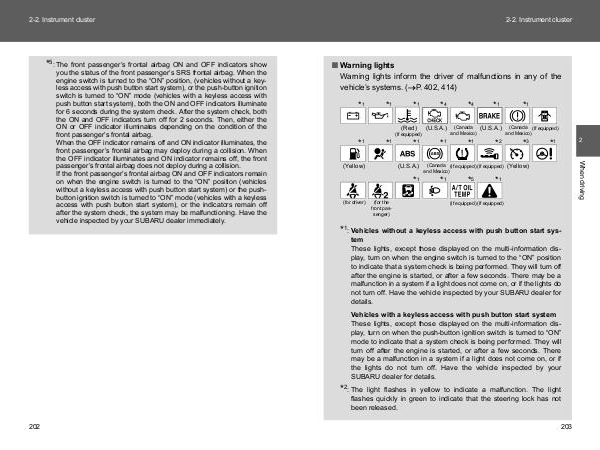

2-2. Instrument cluster
■ Warning lights
Warning lights inform the driver of malfunctions in any of the
vehicle’s systems. (oP. 402, 414)
*1
*1
*1
(Red)
(If equipped)
*1
*1
(U.S.A.)
*1
(for driver)
(for the
front passenger)
(U.S.A.)
*1
*4
(Canada
and Mexico)
*1
*1
(U.S.A.)
*2
(Canada (If equipped) (If equipped)
and Mexico)
*1
*5
*1
(Canada (If equipped)
and Mexico)
*3
2
*1
When driving
(Yellow)
*1
*4
(Yellow)
*1
(If equipped) (If equipped)
*1: Vehicles without a keyless access with push button start system
These lights, except those displayed on the multi-information display, turn on when the engine switch is turned to the “ON” position
to indicate that a system check is being performed. They will turn off
after the engine is started, or after a few seconds. There may be a
malfunction in a system if a light does not come on, or if the lights do
not turn off. Have the vehicle inspected by your SUBARU dealer for
details.
Vehicles with a keyless access wi th push button start system
These lights, except those displayed on the multi-information display, turn on when the push-button ignition switch is turned to “ON”
mode to indicate that a system check is being performed. They will
turn off after the engine is started, or after a few seconds. There
may be a malfunction in a system if a light does not come on, or if
the lights do not turn off. Have the vehicle inspected by your
SUBARU dealer for details.
*2: The
light flashes in yellow to indicate a malfunction. The light
flashes quickly in green to indicate that the steering lock has not
been released.
203
