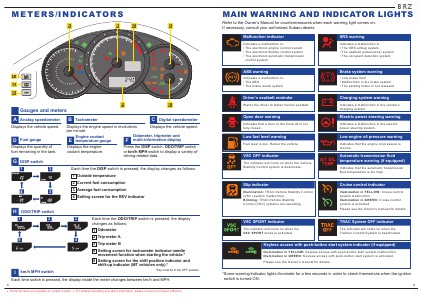

METERS/INDICATORS
A
B
C
D
I
H
G
F
Gauges and meters
A
Analog speedometer
Displays the vehicle speed.
D
Fuel gauge
Displays the quantity of
fuel remaining in the tank.
G
B
2
C
Tachometer
Digital speedometer
Displays the engine speed in revolutions
Displays the vehicle speed.
per minute.
Odometer, tripmeter and
Engine coolant
E temperature gauge
F multi-information display
Displays the engine
coolant temperature.
DISP switch
1
E
Press the DISP switch, ODO/TRIP switch
or km/h MPH switch to display a variety of
driving-related data.
Each time the DISP switch is pressed, the display changes as follows:
1 Outside temperature
2 Current fuel consumption
4
H
3
3 Average fuel consumption
4 Setting screen for the REV indicator
ODO/TRIP switch
1
2
3
Each time the ODO/TRIP switch is pressed, the display
changes as follows:
1 Odometer
5
4
2 Trip meter A
3 Trip meter B
4 Setting screen for tachometer indicator needle
movement function when starting the vehicle.*
5 Setting screen for the shift position indicator and
shift-up indicator (MT vehicles only).*
I
km/h MPH switch
*Key must be in the OFF position.
Each time switch is pressed, the display inside the meter changes between km/h and MPH.
8
Some functions are available on certain models. For detailed operating and safety information, please consult your Owner’s Manual.
