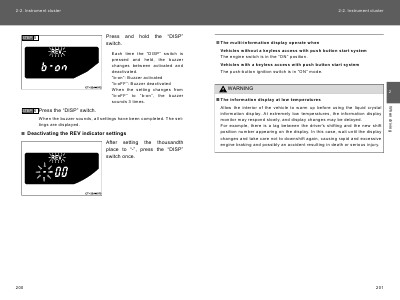

2-2. Instrument cluster
Press and
switch.
STEP 5
hold
the
“DISP”
Each time the “DISP” switch is
pressed and held, the buzzer
changes between activated and
deactivated.
“b-on”: Buzzer activated
“b-oFF”: Buzzer deactivated
When the setting changes from
“b-oFF” to “b-on”, the buzzer
sounds 3 times.
STEP 6
Press the “DISP” switch.
When the buzzer sounds, all settings have been completed. The settings are displayed.
■ Deactivating the REV indicator settings
After setting the thousandth
place to “-”, press the “DISP”
switch once.
200
