Read First

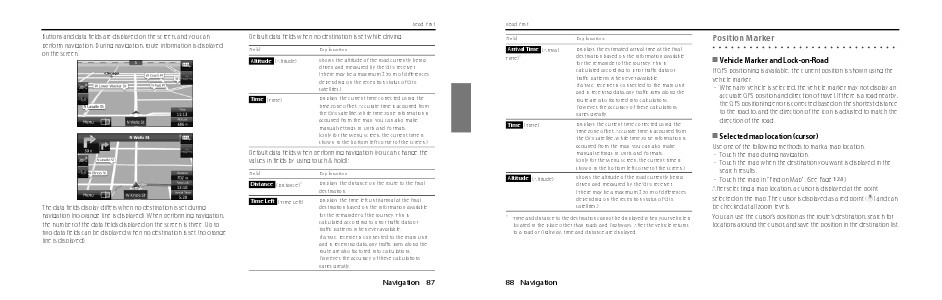

Buttons and data fields are displayed on the screen, and you can
perform navigation. During navigation, route information is displayed
on the screen.
Default data fields when no destination is set while driving
Field
Explanation
Altitude (Altitude)
Shows the altitude of the road currently being
driven and measured by the GPS receiver.
(There may be a maximum ±50 m of differences
depending on the reception status of GPS
satellites.)
Time (Time)
Displays the current time corrected using the
time zone offset. Accurate time is acquired from
the GPS satellite, while time zone information is
acquired from the map. You can also make
manual settings in Units and Formats.
(Only for the Menu screen, the current time is
shown in the bottom left corner of the screen.)
Default data fields when performing navigation (you can change the
values in fields by using touch & hold):
Field
Explanation
Distance (Distance)*
The data fields display differs when no destination is set during
navigation (no orange line is displayed). When performing navigation,
the number of the data fields displayed on the screen is three. Up to
two data fields can be displayed when no destination is set (no orange
line is displayed).
Displays the distance on the route to the final
destination.
Time Left (Time Left)
Displays the time left until arrival at the final
destination based on the information available
for the remainder of the journey. This is
calculated according to prior traffic data or
traffic patterns when ever available.
If a TMC receiver is connected to the main unit
and is receiving data, any traffic jams along the
route are also factored into calculations.
However, the accuracy of these calculations
varies greatly.
Navigation 87
