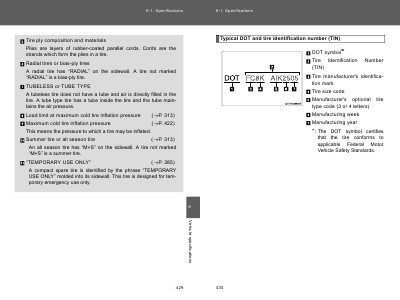

6-1. Specifications
Tire ply composition and materials
Plies are layers of rubber-coated parallel cords. Cords are the
strands which form the plies in a tire.
Radial tires or bias-ply tires
A radial tire has “RADIAL” on the sidewall. A tire not marked
“RADIAL” is a bias-ply tire.
TUBELESS or TUBE TYPE
A tubeless tire does not have a tube and air is directly filled in the
tire. A tube type tire has a tube inside the tire and the tube maintains the air pressure.
Load limit at maximum cold tire inflation pressure
( P. 313)
Maximum cold tire inflation pressure
( P. 422)
This means the pressure to which a tire may be inflated.
Summer tire or all season tire
( P. 313)
An all season tire has “M+S” on the sidewall. A tire not marked
“M+S” is a summer tire.
“TEMPORARY USE ONLY”
(
P. 385)
A compact spare tire is identified by the phrase “TEMPORARY
USE ONLY” molded into its sidewall. This tire is designed for temporary emergency use only.
6
Vehicle specifications
429
