2-2. Instrument cluster

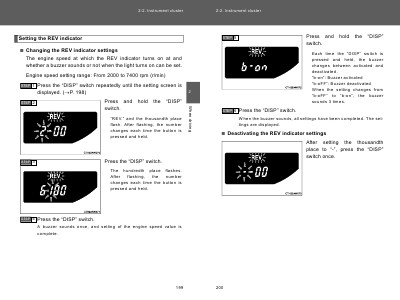

Setting the REV indicator
I Changing the REV indicator settings
The engine speed at which the REV indicator turns on at and
whether a buzzer sounds or not when the light turns on can be set.
Engine speed setting range: From 2000 to 7400 rpm (r/min)
STEP 1
Press the “DISP” switch repeatedly until the setting screen is
displayed. ( P. 198)
hold
the
“DISP”
“REV.” and the thousandth place
flash. After flashing, the number
changes each time the button is
pressed and held.
Press the “DISP” switch.
STEP 3
The hundredth place flashes.
After flashing, the number
changes each time the button is
pressed and held.
STEP 4
Press the “DISP” switch.
A buzzer sounds once, and setting of the engine speed value is
complete.
199
When driving
Press and
switch.
STEP 2
2
