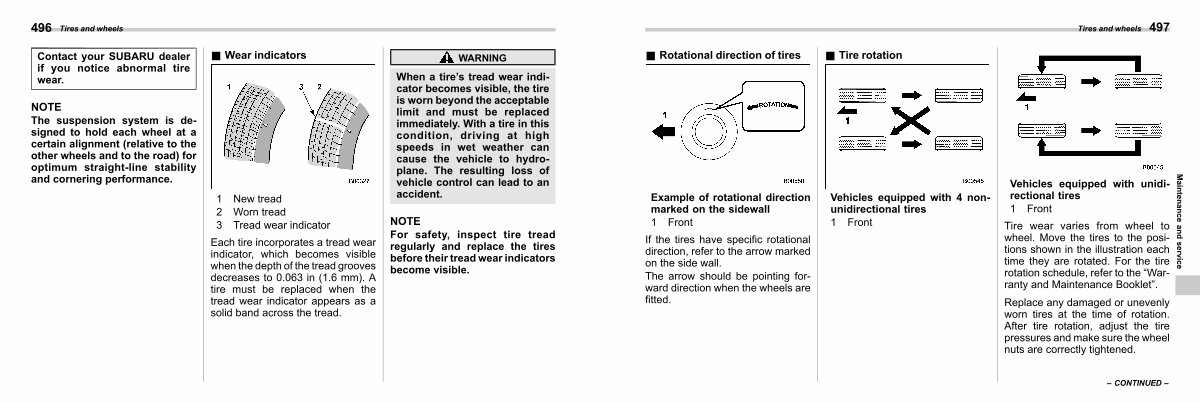

496
Tires and wheels
Contact your SUBARU dealer if you notice abnormal tire wear.
NOTE
The suspension system is designed to hold each wheel at a certain alignment( relative to the other wheels and to the road) for optimum straight-line stability and cornering performance.
& Wear indicators
S11AV06
1 New tread 2 Worn tread 3 Tread wear indicator
Each tire incorporates a tread wear indicator, which becomes visible when the depth of the tread grooves decreases to 0.063 in( 1.6 mm). A tire must be replaced when the tread wear indicator appears as a solid band across the tread.
WARNING
When a tire’ s tread wear indicator becomes visible, the tire is worn beyond the acceptable limit and must be replaced immediately. With a tire in this condition, driving at high speeds in wet weather can cause the vehicle to hydroplane. The resulting loss of vehicle control can lead to an accident.
NOTE
For safety, inspect tire tread regularly and replace the tires before their tread wear indicators become visible.
