bumper beam if you do not have the original.
. Safety performance is decreased and there is increased risk of injury to passengers in the case of an accident if the trailer hitch or a standard bumper beam is not installed. One of them must always be installed on the vehicle.
. If a trailer hitch is installed, it is not possible to install the rear towing hook.
|

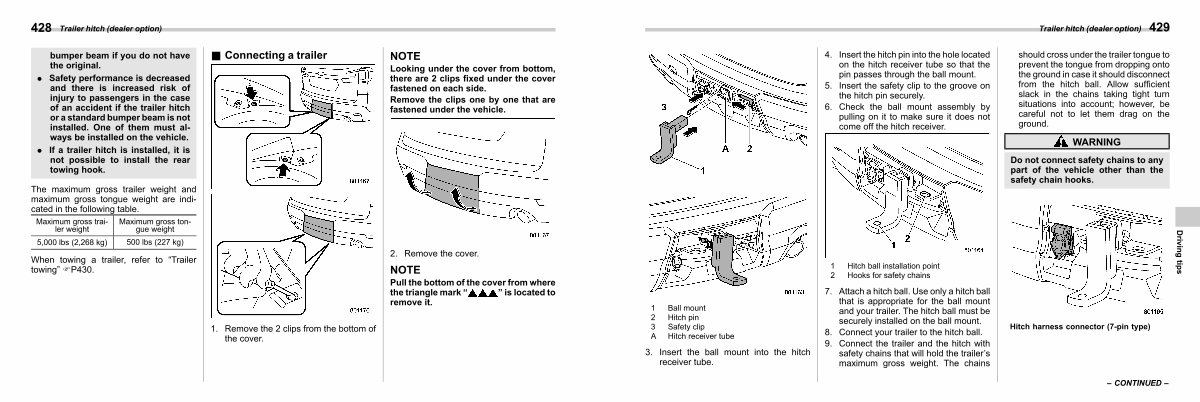

& Connecting a trailer |
S08AK01 |
NOTE
Looking under the cover from bottom, there are 2 clips fixed under the cover fastened on each side.
Remove the clips one by one that are fastened under the vehicle.
|
||||||
|
The maximum gross trailer weight and maximum gross tongue weight are indicated in the following table.
Maximum gross trailer weight
Maximum gross tongue weight
5,000 lbs( 2,268 kg) 500 lbs( 227 kg)
When towing a trailer, refer to“ Trailer towing” FP430.
|
2. Remove the cover.
NOTE
Pull the bottom of the cover from where the triangle mark“” is located to remove it.
|
