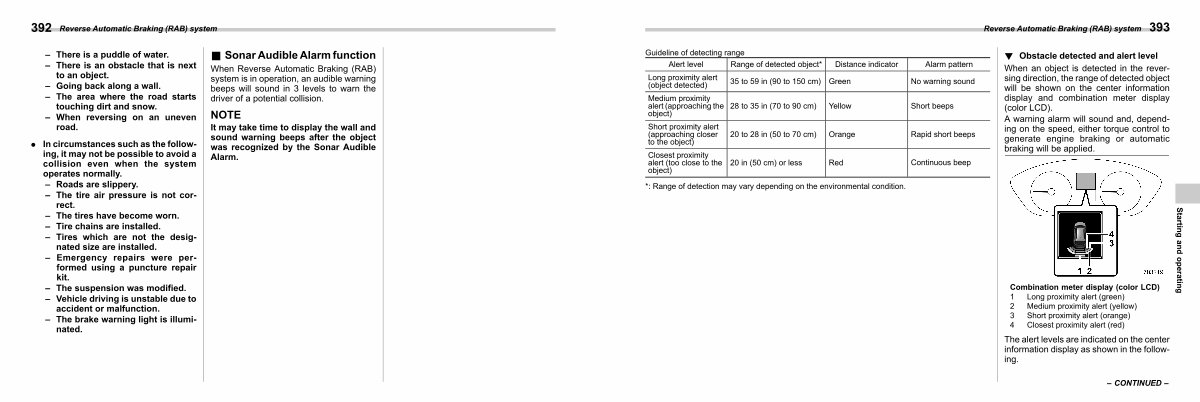

Reverse Automatic Braking( RAB) system 393
Guideline of detecting range |
Alert level |
Range of detected object * |
Distance indicator |
Alarm pattern |
|
Long proximity alert
( object detected)
|
35 to 59 in( 90 to 150 cm) |
Green |
No warning sound |
Medium proximity alert( approaching the |
28 to 35 in( 70 to 90 cm) |
Yellow |
Short beeps |
object) |
|
|
|
Short proximity alert( approaching closer to the object) |
20 to 28 in( 50 to 70 cm) |
Orange |
Rapid short beeps |
Closest proximity alert( too close to the object) |
20 in( 50 cm) or less |
Red |
Continuous beep |
! Obstacle detected and alert level
S07BN0301
When an object is detected in the reversing direction, the range of detected object will be shown on the center information display and combination meter display( color LCD).
A warning alarm will sound and, depending on the speed, either torque control to generate engine braking or automatic braking will be applied.
*: Range of detection may vary depending on the environmental condition.
Combination meter display( color LCD) 1 Long proximity alert( green) 2 Medium proximity alert( yellow) 3 Short proximity alert( orange) 4 Closest proximity alert( red)
The alert levels are indicated on the center information display as shown in the following.
