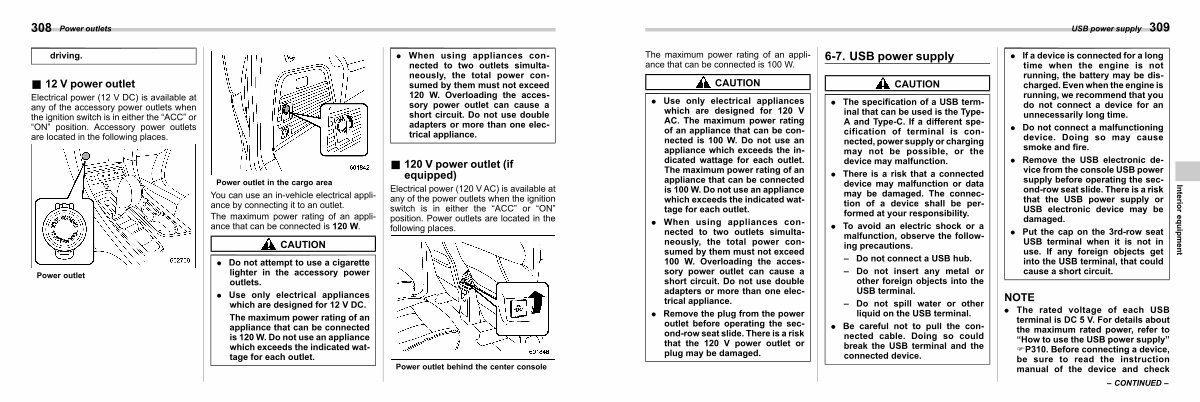

USB power supply 309 |
||||||||
|
The maximum power rating of an appliance that can be connected is 100 W.
CAUTION
. Use only electrical appliances which are designed for 120 V AC. The maximum power rating of an appliance that can be connected is 100 W. Do not use an appliance which exceeds the indicated wattage for each outlet. The maximum power rating of an appliance that can be connected is 100 W. Do not use an appliance which exceeds the indicated wattage for each outlet.
. When using appliances connected to two outlets simultaneously, the total power consumed by them must not exceed 100 W. Overloading the accessory power outlet can cause a short circuit. Do not use double adapters or more than one electrical appliance.
. Remove the plug from the power outlet before operating the second-row seat slide. There is a risk that the 120 V power outlet or plug may be damaged.
|
6-7. USB power supply
CAUTION
S06AY
. The specification of a USB terminal that can be used is the Type- A and Type-C. If a different specification of terminal is connected, power supply or charging may not be possible, or the device may malfunction.
. There is a risk that a connected device may malfunction or data may be damaged. The connection of a device shall be performed at your responsibility.
. To avoid an electric shock or a malfunction, observe the following precautions.
– Do not connect a USB hub.
– Do not insert any metal or other foreign objects into the USB terminal.
– Do not spill water or other liquid on the USB terminal.
. Be careful not to pull the connected cable. Doing so could break the USB terminal and the connected device.
|
. If a device is connected for a long time when the engine is not running, the battery may be discharged. Even when the engine is running, we recommend that you do not connect a device for an unnecessarily long time.
. Do not connect a malfunctioning device. Doing so may cause smoke and fire.
. Remove the USB electronic device from the console USB power supply before operating the second-row seat slide. There is a risk that the USB power supply or USB electronic device may be damaged.
. Put the cap on the 3rd-row seat USB terminal when it is not in use. If any foreign objects get into the USB terminal, that could cause a short circuit.
NOTE
. The rated voltage of each USB terminal is DC 5 V. For details about the maximum rated power, refer to“ How to use the USB power supply” FP310. Before connecting a device, be sure to read the instruction manual of the device and check
– CONTINUED –
|
Interior equipment |
