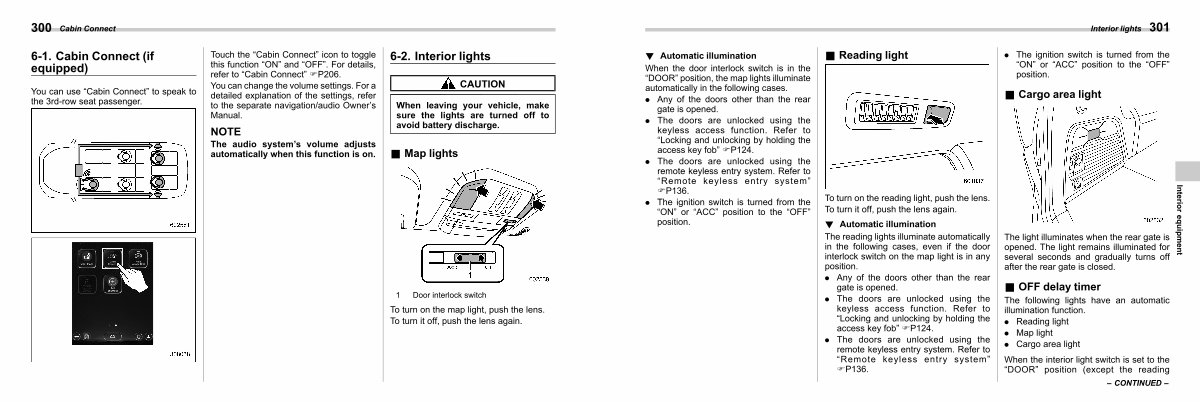

Interior lights 301 |
||||||
|
! Automatic illumination
S06AA0603
When the door interlock switch is in the“ DOOR” position, the map lights illuminate automatically in the following cases.
. Any of the doors other than the rear gate is opened.
. The doors are unlocked using the keyless access function. Refer to“ Locking and unlocking by holding the access key fob” FP124.
. The doors are unlocked using the remote keyless entry system. Refer to“ Remote keyless entry system” FP136.
. The ignition switch is turned from the“ ON” or“ ACC” position to the“ OFF” position.
|
& Reading light
S06AA08
|
To turn on the reading light, push the lens. To turn it off, push the lens again.
! Automatic illumination
S06AA0801
The reading lights illuminate automatically in the following cases, even if the door interlock switch on the map light is in any position.
. Any of the doors other than the rear gate is opened.
. The doors are unlocked using the keyless access function. Refer to“ Locking and unlocking by holding the access key fob” FP124.
. The doors are unlocked using the remote keyless entry system. Refer to“ Remote keyless entry system” FP136.
|
. The ignition switch is turned from the“ ON” or“ ACC” position to the“ OFF” position. |
& Cargo area light
S06AA02
The light illuminates when the rear gate is opened. The light remains illuminated for several seconds and gradually turns off after the rear gate is closed.
& OFF delay timer
S06AA07
The following lights have an automatic illumination function.
. Reading light. Map light. Cargo area light
When the interior light switch is set to the“ DOOR” position( except the reading
– CONTINUED –
|
Interior equipment |
