Air filtration system 293 |
|

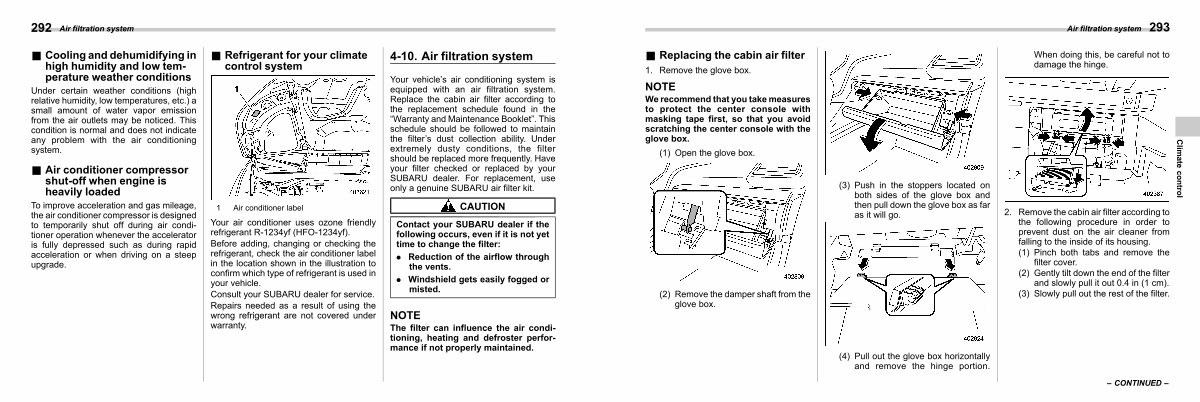

& Replacing the cabin air filter
S04AE01
1. Remove the glove box.
NOTE
We recommend that you take measures to protect the center console with masking tape first, so that you avoid scratching the center console with the glove box.
( 1) Open the glove box.
|
When doing this, be careful not to damage the hinge. |
|||||||
( 2) Remove the damper shaft from the glove box. |
( 3) Push in the stoppers located on both sides of the glove box and then pull down the glove box as far as it will go. |
2. Remove the cabin air filter according to the following procedure in order to prevent dust on the air cleaner from falling to the inside of its housing.( 1) Pinch both tabs and remove the filter cover.( 2) Gently tilt down the end of the filter and slowly pull it out 0.4 in( 1 cm).( 3) Slowly pull out the rest of the filter. |
Climate control |
|||||
( 4) Pull out the glove box horizontally and remove the hinge portion. |
||||||||
– CONTINUED – |
