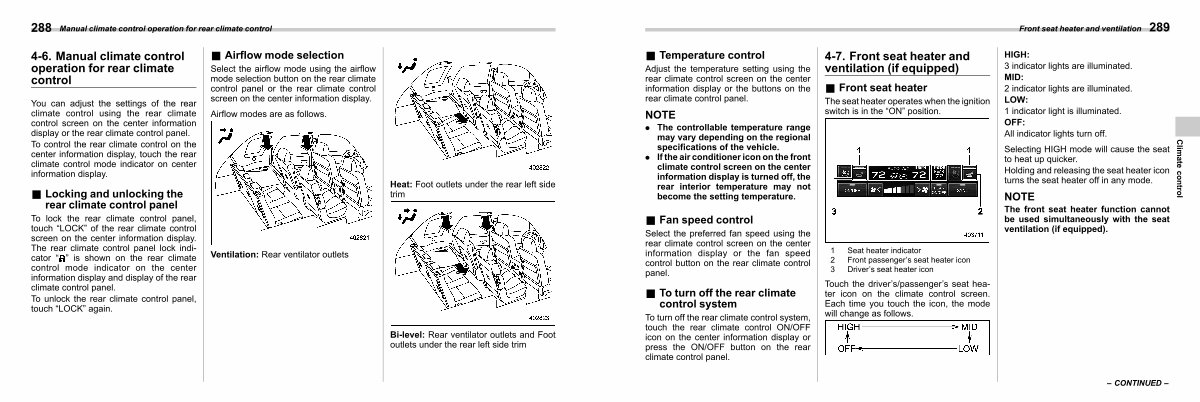

Front seat heater and ventilation 289 |
||||||
|
& Temperature control
S04AK02
Adjust the temperature setting using the rear climate control screen on the center information display or the buttons on the rear climate control panel.
NOTE
. The controllable temperature range may vary depending on the regional specifications of the vehicle.
. If the air conditioner icon on the front climate control screen on the center information display is turned off, the rear interior temperature may not become the setting temperature.
& Fan speed control
S04AK03
Select the preferred fan speed using the rear climate control screen on the center information display or the fan speed control button on the rear climate control panel.
& To turn off the rear climate control system
S04AK07
To turn off the rear climate control system, touch the rear climate control ON / OFF icon on the center information display or press the ON / OFF button on the rear climate control panel.
|
4-7. Front seat heater and ventilation( if equipped)
S04AL
& Front seat heater
S04AL01
The seat heater operates when the ignition switch is in the“ ON” position.
1 Seat heater indicator 2 Front passenger’ s seat heater icon 3 Driver’ s seat heater icon
Touch the driver’ s / passenger’ s seat heater icon on the climate control screen. Each time you touch the icon, the mode will change as follows.
|
HIGH: 3 indicator lights are illuminated. MID: 2 indicator lights are illuminated. LOW: 1 indicator light is illuminated. OFF: All indicator lights turn off.
Selecting HIGH mode will cause the seat to heat up quicker.
Holding and releasing the seat heater icon turns the seat heater off in any mode.
NOTE
The front seat heater function cannot be used simultaneously with the seat ventilation( if equipped).
|
Climate control |
|||
– CONTINUED – |
