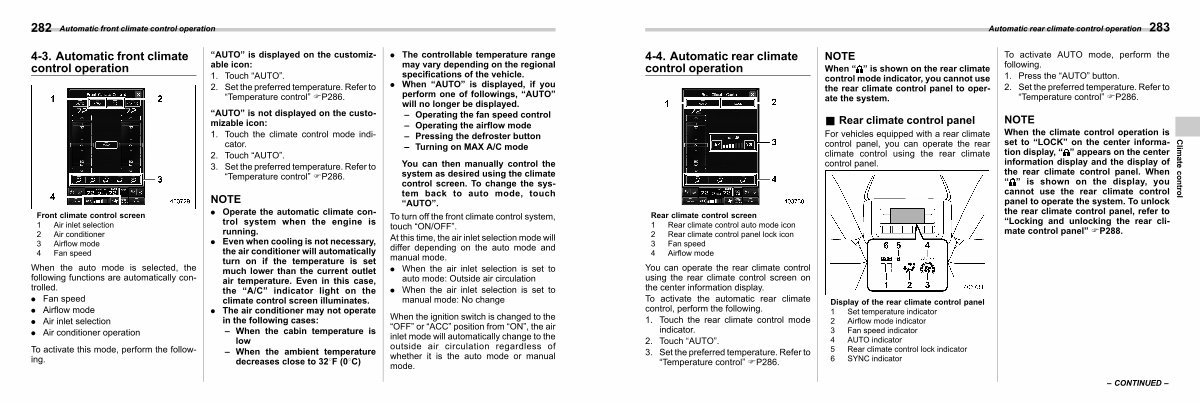

4-4. Automatic rear climate control operation
S04AC
|
NOTE
When“” is shown on the rear climate control mode indicator, you cannot use the rear climate control panel to operate the system.
|
To activate AUTO mode, perform the following.
1. Press the“ AUTO” button.
2. Set the preferred temperature. Refer to“ Temperature control” FP286.
|
||||
Rear climate control screen 1 Rear climate control auto mode icon 2 Rear climate control panel lock icon 3 Fan speed 4 Airflow mode |
& Rear climate control panel
S04AC14
For vehicles equipped with a rear climate control panel, you can operate the rear climate control using the rear climate control panel.
|
NOTE
When the climate control operation is set to“ LOCK” on the center information display,“” appears on the center information display and the display of the rear climate control panel. When“” is shown on the display, you cannot use the rear climate control panel to operate the system. To unlock the rear climate control panel, refer to“ Locking and unlocking the rear climate control panel” FP288.
|
Climate control |
|||
|
You can operate the rear climate control using the rear climate control screen on the center information display.
To activate the automatic rear climate control, perform the following.
1. Touch the rear climate control mode indicator.
2. Touch“ AUTO”.
3. Set the preferred temperature. Refer to“ Temperature control” FP286.
|
Display of the rear climate control panel 1 Set temperature indicator 2 Airflow mode indicator 3 Fan speed indicator 4 AUTO indicator 5 Rear climate control lock indicator 6 SYNC indicator |
|||||
– CONTINUED – |
