Climate control panel 281

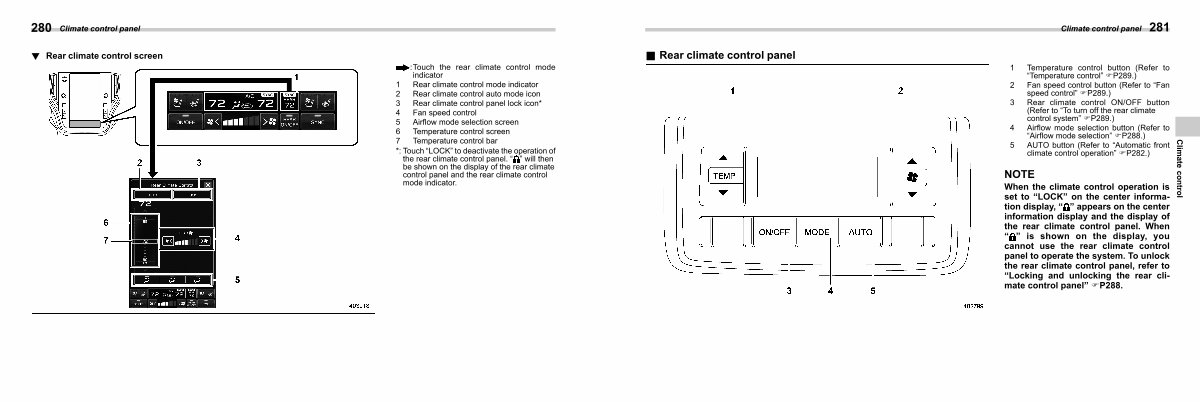

& Rear climate control panel
S04AG09
1 Temperature control button( Refer to“ Temperature control” FP289.)
2 Fan speed control button( Refer to“ Fan speed control” FP289.)
3 Rear climate control ON / OFF button( Refer to“ To turn off the rear climate control system” FP289.)
4 Airflow mode selection button( Refer to“ Airflow mode selection” FP288.)
5 AUTO button( Refer to“ Automatic front climate control operation” FP282.)
NOTE
When the climate control operation is set to“ LOCK” on the center information display,“” appears on the center information display and the display of the rear climate control panel. When“” is shown on the display, you cannot use the rear climate control panel to operate the system. To unlock the rear climate control panel, refer to“ Locking and unlocking the rear climate control panel” FP288.
Climate control
