Climate control panel 279

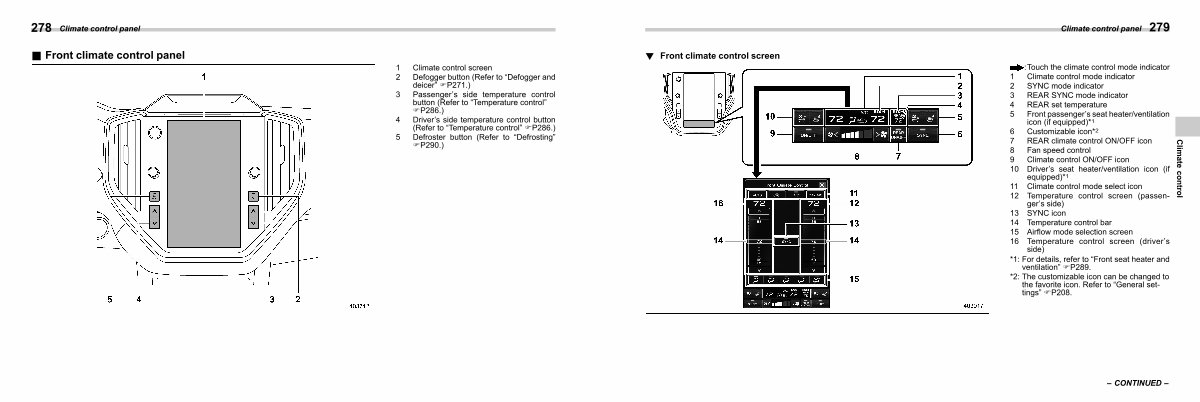

! Front climate control screen
S04AG0801
: Touch the climate control mode indicator 1 Climate control mode indicator 2 SYNC mode indicator 3 REAR SYNC mode indicator 4 REAR set temperature 5 Front passenger’ s seat heater / ventilation icon( if equipped)* 1
6 Customizable icon * 2 7 REAR climate control ON / OFF icon 8 Fan speed control 9 Climate control ON / OFF icon
10 Driver’ s seat heater / ventilation icon( if equipped)* 1
11 Climate control mode select icon 12 Temperature control screen( passenger’ s side)
13 SYNC icon 14 Temperature control bar 15 Airflow mode selection screen 16 Temperature control screen( driver’ s side)
* 1: For details, refer to“ Front seat heater and ventilation” FP289.
* 2: The customizable icon can be changed to the favorite icon. Refer to“ General settings” FP208.
Climate control
– CONTINUED –
