276
Ventilator control
|

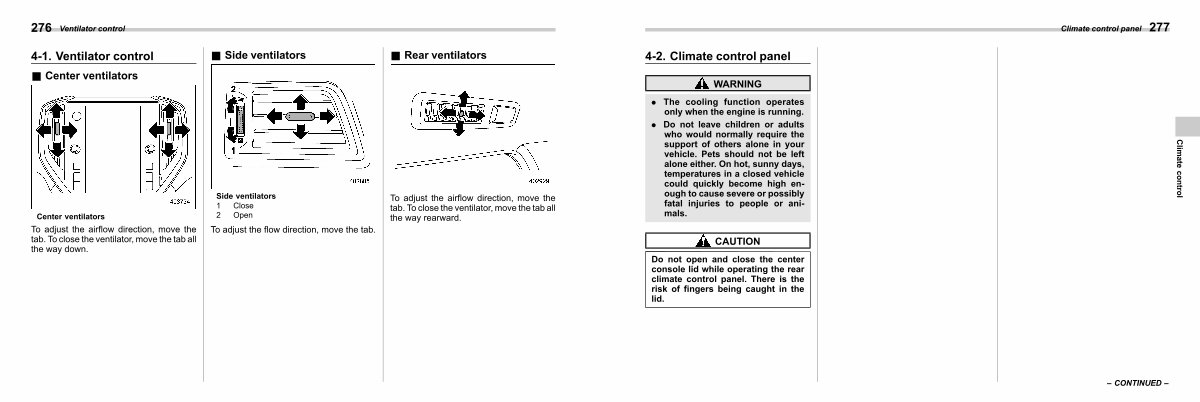

4-1. Ventilator control
& Center ventilators
|
|
|
|
|
|
S04AF
S04AF01
|
& Side ventilators |
S04AF02 |
& Rear ventilators |
S04AF04 |
Center ventilators
To adjust the airflow direction, move the tab. To close the ventilator, move the tab all the way down.
Side ventilators 1 Close 2 Open
To adjust the flow direction, move the tab.
To adjust the airflow direction, move the tab. To close the ventilator, move the tab all the way rearward.
