Mirrors 245 |
||||||
|

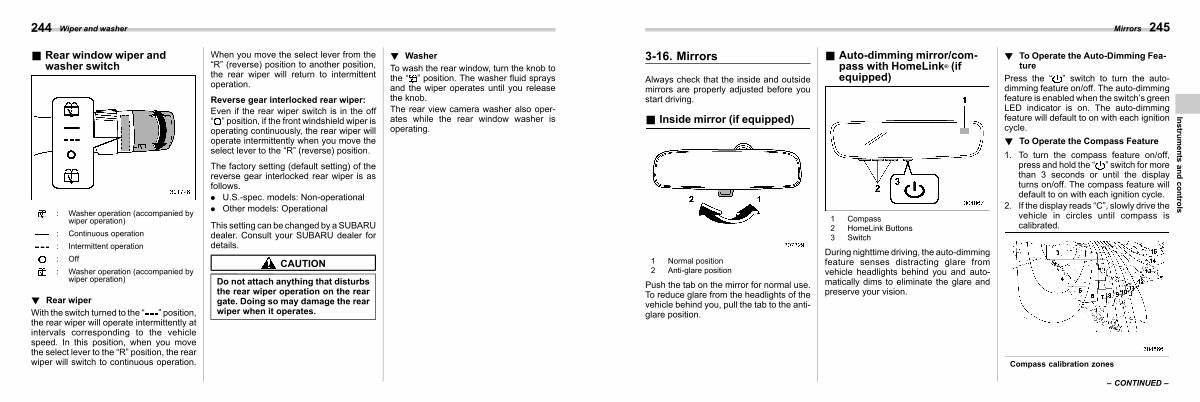

3-16. Mirrors
S03AP
Always check that the inside and outside mirrors are properly adjusted before you start driving.
& Inside mirror( if equipped)
S03AP01
|
& Auto-dimming mirror / compass with HomeLink ®( if equipped)
S03AP07
|
1 Compass 2 HomeLink Buttons 3 Switch |
! To Operate the Auto-Dimming Feature
S03AP0705
Press the“” switch to turn the autodimming feature on / off. The auto-dimming feature is enabled when the switch’ s green LED indicator is on. The auto-dimming feature will default to on with each ignition cycle.
! To Operate the Compass Feature
S03AP0706
1. To turn the compass feature on / off, press and hold the“” switch for more than 3 seconds or until the display turns on / off. The compass feature will default to on with each ignition cycle.
2. If the display reads“ C”, slowly drive the vehicle in circles until compass is calibrated.
|
Instruments and controls |
||
|
1 Normal position 2 Anti-glare position
Push the tab on the mirror for normal use. To reduce glare from the headlights of the vehicle behind you, pull the tab to the antiglare position.
|
During nighttime driving, the auto-dimming feature senses distracting glare from vehicle headlights behind you and automatically dims to eliminate the glare and preserve your vision. |
|||||
Compass calibration zones |
||||||
– CONTINUED – |
