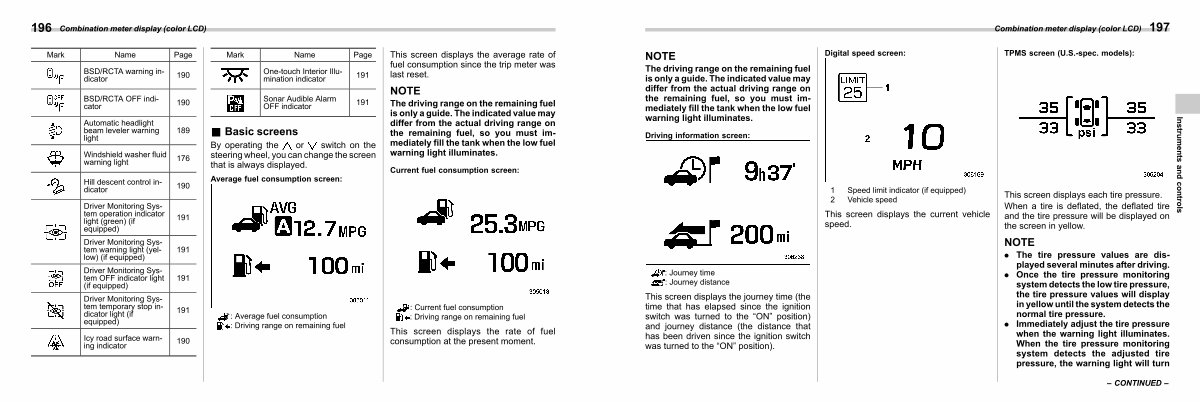

Combination meter display( color LCD) 197 |
|||||||||
|
NOTE
The driving range on the remaining fuel is only a guide. The indicated value may differ from the actual driving range on the remaining fuel, so you must immediately fill the tank when the low fuel warning light illuminates.
|
Driving information screen: |
Digital speed screen: |
1 Speed limit indicator( if equipped) 2 Vehicle speed
This screen displays the current vehicle speed.
|
TPMS screen( U. S.-spec. models): |
This screen displays each tire pressure.
When a tire is deflated, the deflated tire and the tire pressure will be displayed on the screen in yellow.
NOTE
. The tire pressure values are displayed several minutes after driving.
. Once the tire pressure monitoring system detects the low tire pressure, the tire pressure values will display in yellow until the system detects the normal tire pressure.
. Immediately adjust the tire pressure when the warning light illuminates. When the tire pressure monitoring system detects the adjusted tire pressure, the warning light will turn
|
Instruments and controls |
|||
|
: Journey time: Journey distance
This screen displays the journey time( the time that has elapsed since the ignition switch was turned to the“ ON” position) and journey distance( the distance that has been driven since the ignition switch was turned to the“ ON” position).
|
|||||||||
– CONTINUED – |
