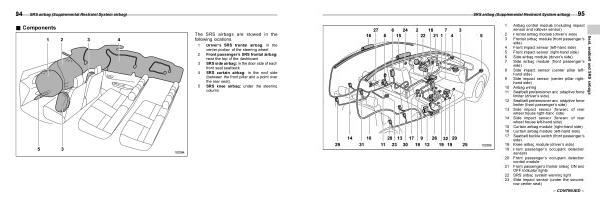

SRS airbag( Supplemental Restraint System airbag) 95
1 Airbag control module( including impact sensor and rollover sensor)
2 Frontal airbag module( driver’ s side)
3 Frontal airbag module( front passenger’ s side)
4 Front impact sensor( left-hand side) 5 Front impact sensor( right-hand side) 6 Side airbag module( driver’ s side)
7 Side airbag module( front passenger’ s side)
8 Side impact sensor( center pillar lefthand side)
9 Side impact sensor( center pillar righthand side)
10 Airbag wiring
11 Seatbelt pretensioner and adaptive force limiter( driver’ s side)
12 Seatbelt pretensioner and adaptive force limiter( front passenger’ s side)
13 Side impact sensor( forward of rear wheel house right-hand side)
14 Side impact sensor( forward of rear wheel house left-hand side)
15 Curtain airbag module( right-hand side) 16 Curtain airbag module( left-hand side)
17 Seatbelt buckle switch( front passenger’ s side)
18 Knee airbag module( driver’ s side) 19 Front passenger’ s occupant detection sensors
20 Front passenger’ s occupant detection control module
21 Front passenger’ s frontal airbag ON and OFF indicator lights
22 SRS airbag system warning light
23 Side impact sensor( under the secondrow center seat)
– CONTINUED –
Seat, seatbelt and SRS airbags
