Subaru Ascent Manuals 2025 Ascent Multimedia System Manual | Page 71

OTHER SETTINGS

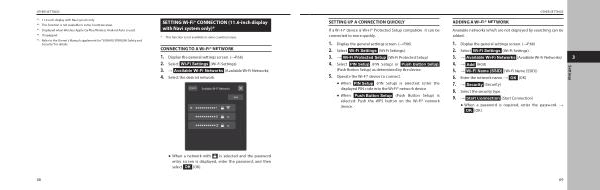

SETTING UP A CONNECTION QUICKLY
If a Wi-Fi ® device is Wi-Fi ® Protected Setup compatible , it can be connected to more quickly .
1 .
Display the general settings screen . ( �P . 66 )
2 .
Select
( Wi-Fi Settings ).
3 .
� Wi-Fi Protected Setup ( Wi-Fi Protected Setup )
4 .
Select PIN Setup ( PIN Setup ) or Push Button Setup
( Push Button Setup ) as determined by the device .
5 .
Operate the Wi-Fi ® device to connect .
� When PIN Setup ( PIN Setup ) is selected : Enter the displayed PIN code into the Wi-Fi ® network device .
� When Push Button Setup ( Push Button Setup ) is selected : Push the WPS button on the Wi-Fi ® network device .
ADDING A Wi-Fi ® NETWORK
Available networks which are not displayed by searching can be added .
1 .
Display the general settings screen . ( �P . 66 )
2 .
Select
( Wi-Fi Settings ).
3 .
� Available Wi-Fi Networks ( Available Wi-Fi Networks )
4 .
�
( Add )
5 .
� Wi-Fi Name ( SSID ) ( Wi-Fi Name ( SSID ))
6 .
Enter the network name . � OK ( OK )
7 .
� Security ( Security )
8 .
Select the security type .
9 .
� Start Connection ( Start Connection )
� When a password is required , enter the password . � OK ( OK )
Settings
3
69
