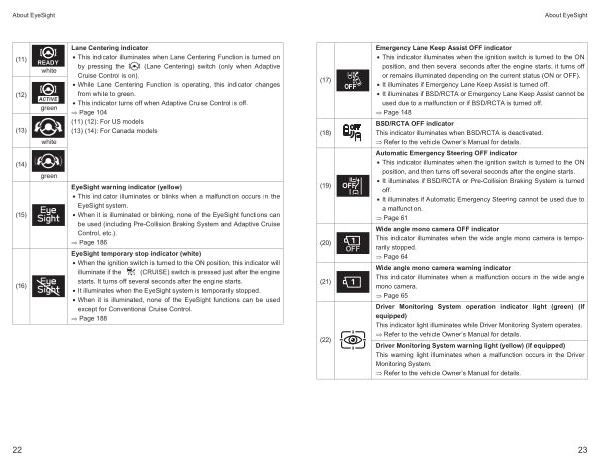

About EyeSight
( 17 )
( 18 )
( 19 )
( 20 )
( 21 )
( 22 )
Emergency Lane Keep Assist OFF indicator
• This indicator illuminates when the ignition switch is turned to the ON position , and then several seconds after the engine starts , it turns off or remains illuminated depending on the current status ( ON or OFF ).
• It illuminates if Emergency Lane Keep Assist is turned off .
• It illuminates if BSD / RCTA or Emergency Lane Keep Assist cannot be used due to a malfunction or if BSD / RCTA is turned off .
� Page 148 BSD / RCTA OFF indicator This indicator illuminates when BSD / RCTA is deactivated . � Refer to the vehicle Owner ’ s Manual for details . Automatic Emergency Steering OFF indicator
• This indicator illuminates when the ignition switch is turned to the ON position , and then turns off several seconds after the engine starts .
• It illuminates if BSD / RCTA or Pre-Collision Braking System is turned off .
• It illuminates if Automatic Emergency Steering cannot be used due to a malfunction .
� Page 61 Wide angle mono camera OFF indicator This indicator illuminates when the wide angle mono camera is temporarily stopped .
� Page 64 Wide angle mono camera warning indicator This indicator illuminates when a malfunction occurs in the wide angle mono camera .
� Page 65 Driver Monitoring System operation indicator light ( green ) ( if equipped ) This indicator light illuminates while Driver Monitoring System operates . � Refer to the vehicle Owner ’ s Manual for details . Driver Monitoring System warning light ( yellow ) ( if equipped ) This warning light illuminates when a malfunction occurs in the Driver Monitoring System . � Refer to the vehicle Owner ’ s Manual for details .
23
