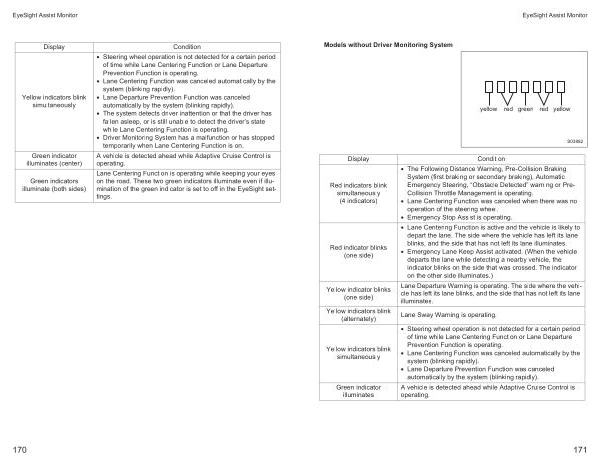

EyeSight Assist Monitor
Models without Driver Monitoring System yellow red green red yellow
S03882
Display
Red indicators blink simultaneously ( 4 indicators )
Red indicator blinks ( one side )
Yellow indicator blinks ( one side )
Yellow indicators blink ( alternately )
Yellow indicators blink simultaneously
Green indicator illuminates
Condition
• The Following Distance Warning , Pre-Collision Braking System ( first braking or secondary braking ), Automatic Emergency Steering , “ Obstacle Detected ” warning or Pre- Collision Throttle Management is operating .
• Lane Centering Function was canceled when there was no operation of the steering wheel .
• Emergency Stop Assist is operating .
• Lane Centering Function is active and the vehicle is likely to depart the lane . The side where the vehicle has left its lane blinks , and the side that has not left its lane illuminates .
• Emergency Lane Keep Assist activated . ( When the vehicle departs the lane while detecting a nearby vehicle , the indicator blinks on the side that was crossed . The indicator on the other side illuminates .)
Lane Departure Warning is operating . The side where the vehicle has left its lane blinks , and the side that has not left its lane illuminates .
Lane Sway Warning is operating .
• Steering wheel operation is not detected for a certain period of time while Lane Centering Function or Lane Departure Prevention Function is operating .
• Lane Centering Function was canceled automatically by the system ( blinking rapidly ).
• Lane Departure Prevention Function was canceled automatically by the system ( blinking rapidly ).
A vehicle is detected ahead while Adaptive Cruise Control is operating .
171
