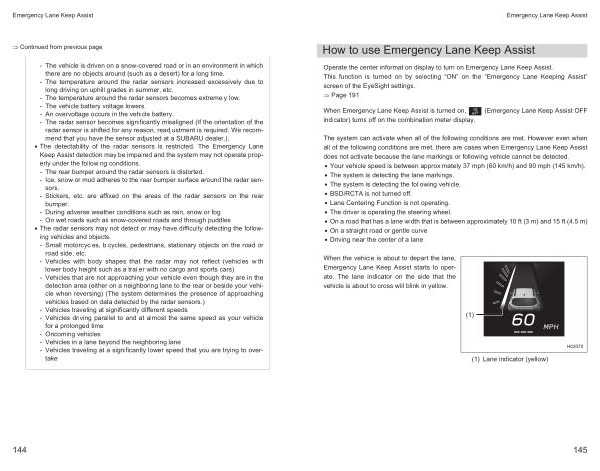

Emergency Lane Keep Assist
How to use Emergency Lane Keep Assist
Operate the center information display to turn on Emergency Lane Keep Assist . This function is turned on by selecting “ ON ” on the “ Emergency Lane Keeping Assist ” screen of the EyeSight settings .
� Page 191
When Emergency Lane Keep Assist is turned on , indicator ) turns off on the combination meter display .
( Emergency Lane Keep Assist OFF
The system can activate when all of the following conditions are met . However even when all of the following conditions are met , there are cases when Emergency Lane Keep Assist does not activate because the lane markings or following vehicle cannot be detected .
• Your vehicle speed is between approximately 37 mph ( 60 km / h ) and 90 mph ( 145 km / h ).
• The system is detecting the lane markings .
• The system is detecting the following vehicle .
• BSD / RCTA is not turned off .
• Lane Centering Function is not operating .
• The driver is operating the steering wheel .
• On a road that has a lane width that is between approximately 10 ft ( 3 m ) and 15 ft ( 4.5 m )
• On a straight road or gentle curve
• Driving near the center of a lane
When the vehicle is about to depart the lane , Emergency Lane Keep Assist starts to operate . The lane indicator on the side that the vehicle is about to cross will blink in yellow .
( 1 )
( 1 ) Lane indicator ( yellow )
H02070
145
