438

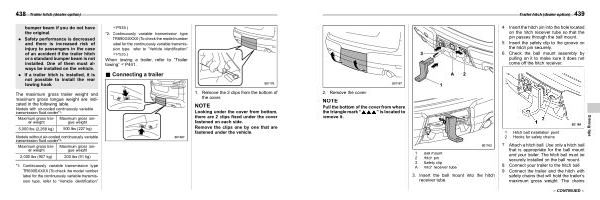

Trailer hitch ( dealer option )
bumper beam if you do not have the original .
. Safety performance is decreased and there is increased risk of injury to passengers in the case of an accident if the trailer hitch or a standard bumper beam is not installed . One of them must always be installed on the vehicle .
. If a trailer hitch is installed , it is not possible to install the rear towing hook .
FP535
.)
* 2 : Continuously variable transmission type TR690GXXXX ( To check the model number label for the continuously variable transmission type , refer to “ Vehicle identification ” FP535 .)
When towing a trailer , refer to “ Trailer towing ” FP441 .
& Connecting a trailer
S08AK01
The maximum gross trailer weight and maximum gross tongue weight are indicated in the following table . Models with air-cooled continuously variable transmission fluid cooler * 1 :
Maximum gross trailer weight
Maximum gross tongue weight
5,000 lbs ( 2,268 kg ) 500 lbs ( 227 kg )
Models without air-cooled continuously variable transmission fluid cooler * 2 :
Maximum gross trailer weight
Maximum gross tongue weight
2,000 lbs ( 907 kg ) 200 lbs ( 91 kg )
1 . Remove the 2 clips from the bottom of the cover .
NOTE
Looking under the cover from bottom , there are 2 clips fixed under the cover fastened on each side .
Remove the clips one by one that are fastened under the vehicle .
* 1 : Continuously variable transmission type TR690SXXXX ( To check the model number label for the continuously variable transmission type , refer to “ Vehicle identification ”
