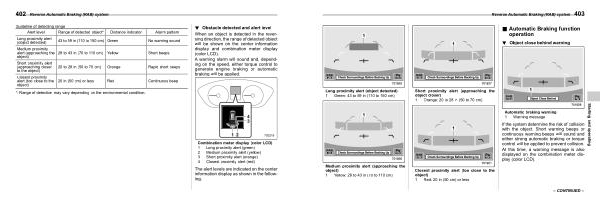

Reverse Automatic Braking ( RAB ) system
Guideline of detecting range |
Alert level |
Range of detected object * |
Distance indicator |
Alarm pattern |
|
Long proximity alert
( object detected )
|
43 to 59 in ( 110 to 150 cm ) |
Green |
No warning sound |
Medium proximity alert ( approaching the |
28 to 43 in ( 70 to 110 cm ) |
Yellow |
Short beeps |
object ) |
|
|
|
Short proximity alert ( approaching closer to the object ) |
20 to 28 in ( 50 to 70 cm ) |
Orange |
Rapid short beeps |
Closest proximity alert ( too close to the object ) |
20 in ( 50 cm ) or less |
Red |
Continuous beep |
! Obstacle detected and alert level
S07BN0301
When an object is detected in the reversing direction , the range of detected object will be shown on the center information display and combination meter display ( color LCD ).
A warning alarm will sound and , depending on the speed , either torque control to generate engine braking or automatic braking will be applied .
*: Range of detection may vary depending on the environmental condition .
Combination meter display ( color LCD ) 1 Long proximity alert ( green ) 2 Medium proximity alert ( yellow ) 3 Short proximity alert ( orange ) 4 Closest proximity alert ( red )
The alert levels are indicated on the center information display as shown in the following .
