202

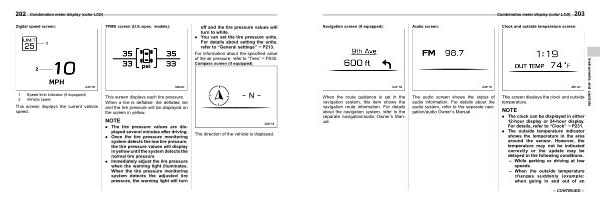

Combination meter display ( color LCD )
Digital speed screen :
TPMS screen ( U . S . -spec . models ):
off and the tire pressure values will turn to white .
. You can set the tire pressure units . For details about setting the units , refer to “ General settings ” FP213 .
For information about the specified value of the air pressure , refer to “ Tires ” FP530 .
Compass screen ( if equipped ):
1 Speed limit indicator ( if equipped ) 2 Vehicle speed
This screen displays the current vehicle speed .
This screen displays each tire pressure .
When a tire is deflated , the deflated tire and the tire pressure will be displayed on the screen in yellow .
NOTE
. The tire pressure values are displayed several minutes after driving .
. Once the tire pressure monitoring system detects the low tire pressure , the tire pressure values will display in yellow until the system detects the normal tire pressure .
. Immediately adjust the tire pressure when the warning light illuminates . When the tire pressure monitoring system detects the adjusted tire pressure , the warning light will turn
The direction of the vehicle is displayed .
