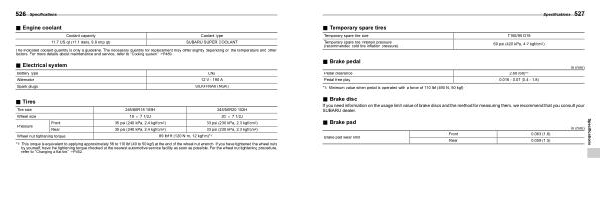

Specifications 527
& Temporary spare tires
S12AA15
Temporary spare tire size Temporary spare tire inflation pressure ( recommended cold tire inflation pressure )
T165 / 90 D18 60 psi ( 420 kPa , 4.2 kgf / cm 2 )
& Brake pedal
S12AA27
Pedal clearance |
2.68 ( 68 )* 1
|
Pedal free play |
0.016 - 0.07 ( 0.4 - 1.8 ) |
in ( mm )
* 1 : Minimum value when pedal is operated with a force of 110 lbf ( 490 N , 50 kgf )
& Brake disc
S12AA18
If you need information on the usage limit value of brake discs and the method for measuring them , we recommend that you consult your SUBARU dealer .
|
& Brake pad
Brake pad wear limit
|
S12AA28 |
Front |
0.063 ( 1.6 ) |
Rear |
0.059 ( 1.5 ) |
|
in ( mm ) |
Specifications |
