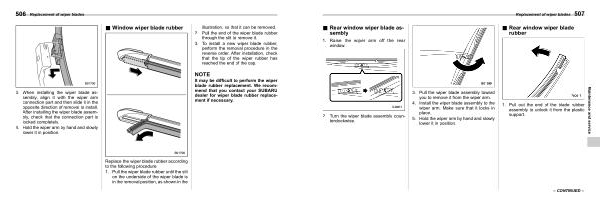

& Rear window wiper blade assembly
S11AZ03
1 . Raise the wiper arm off the rear window .
|
& Rear window wiper blade rubber
S11AZ04
|
|||||||
2 . Turn the wiper blade assembly counterclockwise . |
3 . Pull the wiper blade assembly toward you to remove it from the wiper arm .
4 . Install the wiper blade assembly to the wiper arm . Make sure that it locks in place .
5 . Hold the wiper arm by hand and slowly lower it in position .
|
1 . Pull out the end of the blade rubber assembly to unlock it from the plastic support . |
Maintenance and service |
|||||
– CONTINUED – |
