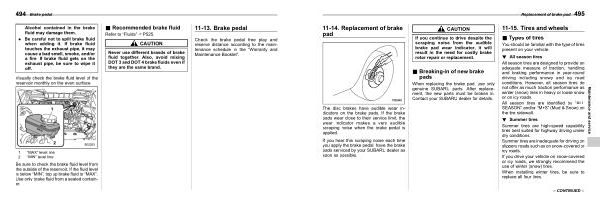

494
Brake pedal
Alcohol contained in the brake fluid may damage them .
. Be careful not to spill brake fluid when adding it . If brake fluid touches the exhaust pipe , it may cause a bad smell , smoke , and / or a fire . If brake fluid gets on the exhaust pipe , be sure to wipe it off .
Visually check the brake fluid level of the reservoir monthly on the even surface .
& Recommended brake fluid
S11AO02
Refer to “ Fluids ” FP525 . CAUTION
Never use different brands of brake fluid together . Also , avoid mixing DOT 3 and DOT 4 brake fluids even if they are the same brand .
11-13 . Brake pedal
S11AR
Check the brake pedal free play and reserve distance according to the maintenance schedule in the “ Warranty and Maintenance Booklet ”.
1 “ MAX ” level line 2 “ MIN ” level line
Be sure to check the brake fluid level from the outside of the reservoir . If the fluid level is below “ MIN ”, top up brake fluid to “ MAX ”. Use only brake fluid from a sealed container .
