Air cleaner element 491 |
||||||||||||||
|
11-7 . Air cleaner element
WARNING
S11AG
Do not operate the engine with the air cleaner element removed . The air cleaner element not only filters intake air but also stops flames if the engine backfires . If the air cleaner element is not installed when the engine backfires , you could be burned .
|
CAUTION
When replacing the air cleaner element , use a genuine SUBARU air cleaner element . If it is not used , it will cause a negative effect to the engine .
The air cleaner element functions as a filter screen . When the element is perforated or removed , engine wear will be excessive and engine life shortened .
|
It is not necessary to clean or wash the air cleaner element . |

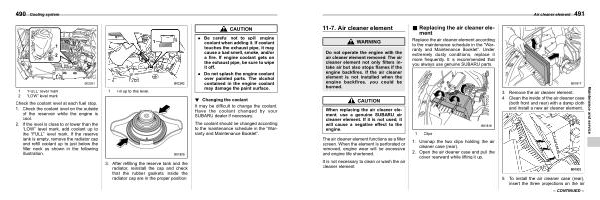

& Replacing the air cleaner element
S11AG01
Replace the air cleaner element according to the maintenance schedule in the “ Warranty and Maintenance Booklet ”. Under extremely dusty conditions , replace it more frequently . It is recommended that you always use genuine SUBARU parts .
1 Clips
1 . Unsnap the two clips holding the air cleaner case ( rear ).
2 . Open the air cleaner case and pull the cover rearward while lifting it up .
|
3 . Remove the air cleaner element .
4 . Clean the inside of the air cleaner case ( both front and rear ) with a damp cloth and install a new air cleaner element .
|
Maintenance and service |
|||||||||
5 . To install the air cleaner case ( rear ), insert the three projections on the air |
||||||||||||||
– CONTINUED – |
