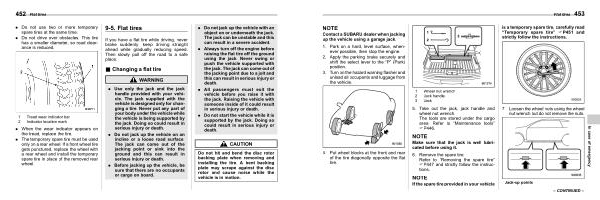

Flat tires 453
NOTE
Contact a SUBARU dealer when jacking up the vehicle using a garage jack .
1 . Park on a hard , level surface , whenever possible , then stop the engine .
2 . Apply the parking brake securely and shift the select lever to the “ P ” ( Park ) position .
3 . Turn on the hazard warning flasher and unload all occupants and luggage from the vehicle . is a temporary spare tire , carefully read “ Temporary spare tire ” FP451 and strictly follow the instructions .
1 Wheel nut wrench 2 Jack handle 3 Jack
4 . Put wheel blocks at the front and rear of the tire diagonally opposite the flat tire .
5 . Take out the jack , jack handle and wheel nut wrench . The tools are stored under the cargo area . Refer to “ Maintenance tools ” FP446 .
NOTE
Make sure that the jack is well lubricated before using it .
6 . Remove the spare tire . Refer to “ Removing the spare tire ” FP447 and strictly follow the instructions .
NOTE
If the spare tire provided in your vehicle
7 . Loosen the wheel nuts using the wheel nut wrench but do not remove the nuts .
In case of emergency
Jack-up points
– CONTINUED –
