358
Continuously variable transmission
treme care . Do not try to pass a vehicle in front when driving on an uphill slope while towing .
. The continuously variable transmission is a chain type system that provides superior transmission efficiency for maximum fuel economy . At times , depending on varying driving conditions , a chain operating sound may be heard that is characteristic of this type of system .

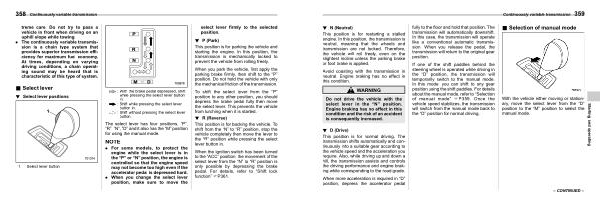

& Select lever
! Select lever positions
1 Select lever button
S07BG01
S07BG0105
: With the brake pedal depressed , shift while pressing the select lever button in .
: Shift while pressing the select lever button in .
: Shift without pressing the select lever button .
The select lever has four positions , “ P ”, “ R ”, “ N ”, “ D ” and it also has the “ M ” position for using the manual mode .
NOTE
. For some models , to protect the engine while the select lever is in the “ P ” or “ N ” position , the engine is controlled so that the engine speed may not become too high even if the accelerator pedal is depressed hard .
. When you change the select lever position , make sure to move the select lever firmly to the selected position .
! P ( Park )
S07BG0101
This position is for parking the vehicle and starting the engine . In this position , the transmission is mechanically locked to prevent the vehicle from rolling freely .
When you park the vehicle , first apply the parking brake firmly , then shift to the “ P ” position . Do not hold the vehicle with only the mechanical friction of the transmission .
To shift the select lever from the “ P ” position to any other position , you should depress the brake pedal fully then move the select lever . This prevents the vehicle from lurching when it is started .
! R ( Reverse )
S07BG0102
This position is for backing the vehicle . To shift from the “ N ” to “ R ” position , stop the vehicle completely then move the lever to the “ R ” position while pressing the select lever button in .
When the ignition switch has been turned to the “ ACC ” position , the movement of the select lever from the “ N ” to “ R ” position is only possible by depressing the brake pedal . For details , refer to “ Shift lock function ” FP361 .
