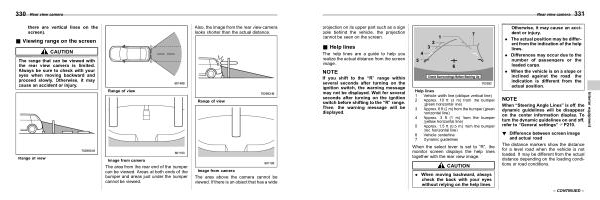

Rear view camera 331 |
||||||
|
projection on its upper part such as a sign pole behind the vehicle , the projection cannot be seen on the screen .
& Help lines
S06AW04
The help lines are a guide to help you realize the actual distance from the screen image .
NOTE
If you shift to the “ R ” range within several seconds after turning on the ignition switch , the warning message may not be displayed . Wait for several seconds after turning on the ignition switch before shifting to the “ R ” range . Then , the warning message will be displayed .
|
Help lines 1 Vehicle width line ( oblique vertical line )
2 Approx . 10 ft ( 3 m ) from the bumper ( green horizontal line )
3 Approx . 6 ft ( 2 m ) from the bumper ( green horizontal line )
4 Approx . 3 ft ( 1 m ) from the bumper ( yellow horizontal line )
5 Approx . 1.5 ft ( 0.5 m ) from the bumper ( red horizontal line )
6 Vehicle centerline 7 Dynamic guidelines
When the select lever is set to “ R ”, the monitor screen displays the help lines together with the rear view image .
CAUTION
|
Otherwise , it may cause an accident or injury .
. The actual position may be different from the indication of the help lines .
. Differences may occur due to the number of passengers or the loaded cargo .
. When the vehicle is on a slope or inclined against the road , the indication is different from the actual position .
NOTE
When “ Steering Angle Lines ” is off , the dynamic guidelines will be disappear on the center information display . To turn the dynamic guidelines on and off , refer to “ General settings ” FP210 .
! Difference between screen image and actual road
S06AW0401
The distance markers show the distance for a level road when the vehicle is not loaded . It may be different from the actual distance depending on the loading conditions or road conditions .
|
Interior equipment |
|||
. When moving backward , always check the back with your eyes without relying on the help lines . |
– CONTINUED – |
