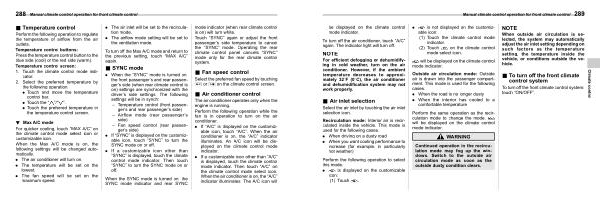

288
Manual climate control operation for front climate control
& Temperature control
S04AJ02
Perform the following operation to regulate the temperature of airflow from the air outlets .
Temperature control buttons :
Press the temperature control button to the blue side ( cool ) or the red side ( warm ).
Temperature control screen :
1 . Touch the climate control mode indicator .
2 . Select the preferred temperature by the following operation . . Touch and move the temperature control bar . . Touch the “ ”/“ ”. . Touch the preferred temperature in the temperature control screen .
! Max A / C mode
S04AJ0208
For quicker cooling , touch “ MAX A / C ” on the climate control mode select icon or customizable icon .
When the Max A / C mode is on , the following settings will be changed automatically .
. The air conditioner will turn on .
. The temperature will be set on the lowest .
. The fan speed will be set on the maximum speed .
. The air inlet will be set to the recirculation mode .
. The airflow mode setting will be set to the ventilation mode .
To turn off the Max A / C mode and return to the previous setting , touch “ MAX A / C ” again .
& SYNC mode
S04AJ10
. When the “ SYNC ” mode is turned on , the front passenger ’ s and rear passenger ’ s side ( when rear climate control is on ) settings are synchronized with the driver ’ s side settings . The following settings will be in synch : – Temperature control ( front passenger ’ s and rear passenger ’ s side ) – Airflow mode ( rear passenger ’ s side ) – Fan speed control ( rear passenger ’ s side )
. If “ SYNC ” is displayed on the customizable icon , touch “ SYNC ” to turn the SYNC mode on or off .
. If a customizable icon other than “ SYNC ” is displayed , touch the climate control mode indicator . Then touch “ SYNC ” to turn the SYNC mode on or off .
When the SYNC mode is turned on , the SYNC mode indicator and rear SYNC mode indicator ( when rear climate control is on ) will turn white .
Touch “ SYNC ” again or adjust the front passenger ’ s side temperature to cancel the “ SYNC ” mode . Operating the rear climate control panel cancels “ SYNC ” mode only for the rear climate control system .
& Fan speed control
S04AJ03
Select the preferred fan speed by touching or on the climate control screen .
& Air conditioner control
S04AJ04
The air conditioner operates only when the engine is running .
Perform the following operation while the fan is in operation to turn on the air conditioner .
. If “ A / C ” is displayed on the customizable icon , touch “ A / C ”. When the air conditioner is on , the “ A / C ” indicator illuminates . An A / C icon will be displayed on the climate control mode indicator .
. If a customizable icon other than “ A / C ” is displayed , touch the climate control mode indicator . Then touch “ A / C ” on the climate control mode select icon . When the air conditioner is on , the “ A / C ” indicator illuminates . The A / C icon will
