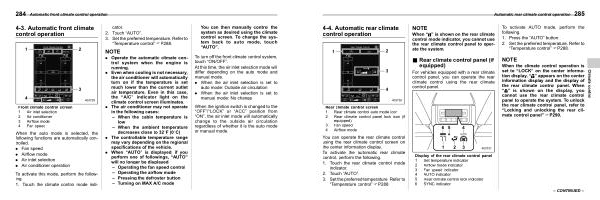

4-4 . Automatic rear climate control operation
S04AC
|
NOTE
When “ ” is shown on the rear climate control mode indicator , you cannot use the rear climate control panel to operate the system .
|
To activate AUTO mode , perform the following .
1 . Press the “ AUTO ” button .
2 . Set the preferred temperature . Refer to “ Temperature control ” FP288 .
|
||||
|
Rear climate control screen 1 Rear climate control auto mode icon 2 Rear climate control panel lock icon ( if equipped )
3 Fan speed 4 Airflow mode
|
& Rear climate control panel ( if equipped )
S04AC14
For vehicles equipped with a rear climate control panel , you can operate the rear climate control using the rear climate control panel .
|
NOTE
When the climate control operation is set to “ LOCK ” on the center information display , “ ” appears on the center information display and the display of the rear climate control panel . When “ ” is shown on the display , you cannot use the rear climate control panel to operate the system . To unlock the rear climate control panel , refer to “ Locking and unlocking the rear climate control panel ” FP290 .
|
Climate control |
|||
|
You can operate the rear climate control using the rear climate control screen on the center information display .
To activate the automatic rear climate control , perform the following .
1 . Touch the rear climate control mode indicator .
2 . Touch “ AUTO ”.
3 . Set the preferred temperature . Refer to “ Temperature control ” FP288 .
|
Display of the rear climate control panel 1 Set temperature indicator 2 Airflow mode indicator 3 Fan speed indicator 4 AUTO indicator 5 Rear climate control lock indicator 6 SYNC indicator |
|||||
– CONTINUED – |
