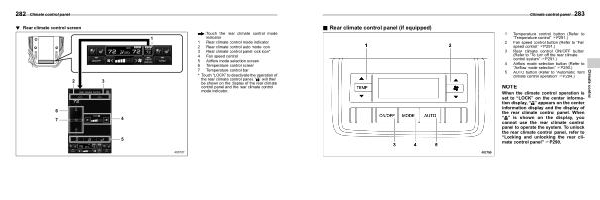

Climate control panel 283
& Rear climate control panel ( if equipped )
S04AG09
1 Temperature control button ( Refer to “ Temperature control ” FP291 .)
2 Fan speed control button ( Refer to “ Fan speed control ” FP291 .)
3 Rear climate control ON / OFF button ( Refer to “ To turn off the rear climate control system ” FP291 .)
4 Airflow mode selection button ( Refer to “ Airflow mode selection ” FP290 .)
5 AUTO button ( Refer to “ Automatic front climate control operation ” FP284 .)
NOTE
When the climate control operation is set to “ LOCK ” on the center information display , “ ” appears on the center information display and the display of the rear climate control panel . When “ ” is shown on the display , you cannot use the rear climate control panel to operate the system . To unlock the rear climate control panel , refer to “ Locking and unlocking the rear climate control panel ” FP290 .
Climate control
