Climate control panel 281

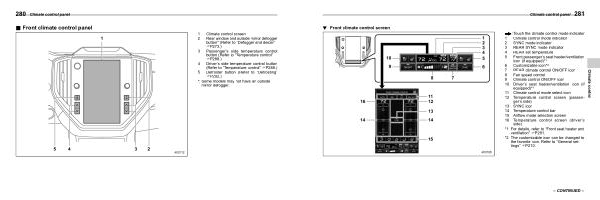

! Front climate control screen
S04AG0801
: Touch the climate control mode indicator 1 Climate control mode indicator 2 SYNC mode indicator 3 REAR SYNC mode indicator 4 REAR set temperature 5 Front passenger ’ s seat heater / ventilation icon ( if equipped )* 1
6 Customizable icon * 2 7 REAR climate control ON / OFF icon 8 Fan speed control 9 Climate control ON / OFF icon
10 Driver ’ s seat heater / ventilation icon ( if equipped )* 1
11 Climate control mode select icon 12 Temperature control screen ( passenger ’ s side )
13 SYNC icon 14 Temperature control bar 15 Airflow mode selection screen 16 Temperature control screen ( driver ’ s side )
* 1 : For details , refer to “ Front seat heater and ventilation ” FP291 .
* 2 : The customizable icon can be changed to the favorite icon . Refer to “ General settings ” FP210 .
Climate control
– CONTINUED –
