Ventilator control
|

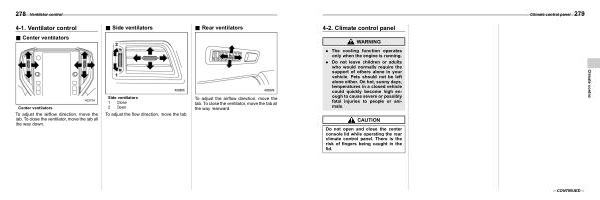

4-1 . Ventilator control
& Center ventilators
|
|
|
|
|
|
S04AF
S04AF01
|
& Side ventilators |
S04AF02 |
& Rear ventilators |
S04AF04 |
Center ventilators
To adjust the airflow direction , move the tab . To close the ventilator , move the tab all the way down .
Side ventilators 1 Close 2 Open
To adjust the flow direction , move the tab .
To adjust the airflow direction , move the tab . To close the ventilator , move the tab all the way rearward .
